Aluminum Outdoor Concert LED Display Truss System

Aluminum outdoor concert led display truss system providing excellent visibility for audiences at outdoor events. Designed to securely support the weight of large LED screens and associated audio-visual equipment.
  • Lead Time:

    7-14 days
  • MOQ:

    1
  • goods stock:

    100
  • Product Detail

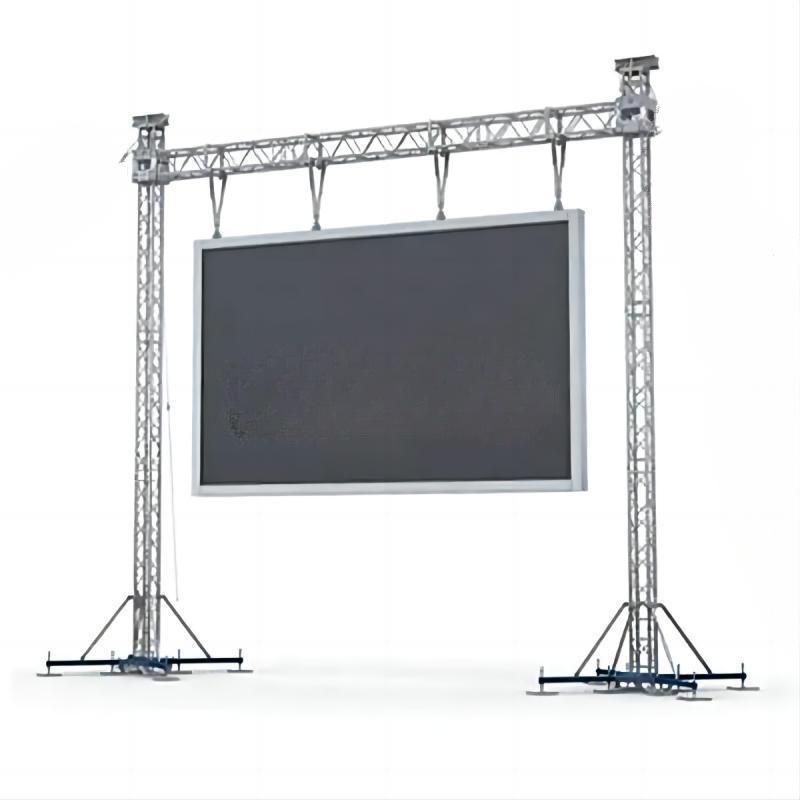

Ground Support Goal Posts Truss System for LED Screen

Components and Materials:

Truss Structure:

  • Material: High-grade aluminum alloy, known for its excellent strength-to-weight ratio and corrosion resistance.
  • Design: The truss system features a modular design with both vertical and horizontal trusses to form a stable frame.



Support System:

  • Base Plates: Heavy-duty base plates provide a stable foundation and distribute the load evenly across the ground.
  • Bracing: Includes cross braces and diagonal braces to enhance stability and rigidity.



Mounting Hardware:

  • Brackets and Clamps: Specialized brackets and clamps to securely hold and mount LED screens.
  • Hoisting Mechanism: May include manual or electric hoists and winches for lifting and precisely positioning the LED screens.



Technical Specifications:

Packing weight: 400kg

Packing volume: 3cbm

Item Specification (Square Truss) Qty
Length (M) Main Tube (MM) Size (MM)
Beam 3 50×3.0 CS389×389 2 pcs
Pillar 3 50×3.0 CS289×289 2 pcs
1 50×3.0 CS289×289 2 pcs
Tower Spigot Sleeve Block S 2 pcs
Steel Base S 2 pcs
Top Section S 2 pcs
Manual hoist, BA05 2 Tons 2 pcs
Spigot Hinge Section, Height 1m 2 pcs
Fibre sling, BA04, 2 tons 3m 2 pcs
Long outrigger 8 pcs
Truss Accessory Conical coupler & Safety clip & pin Whole set

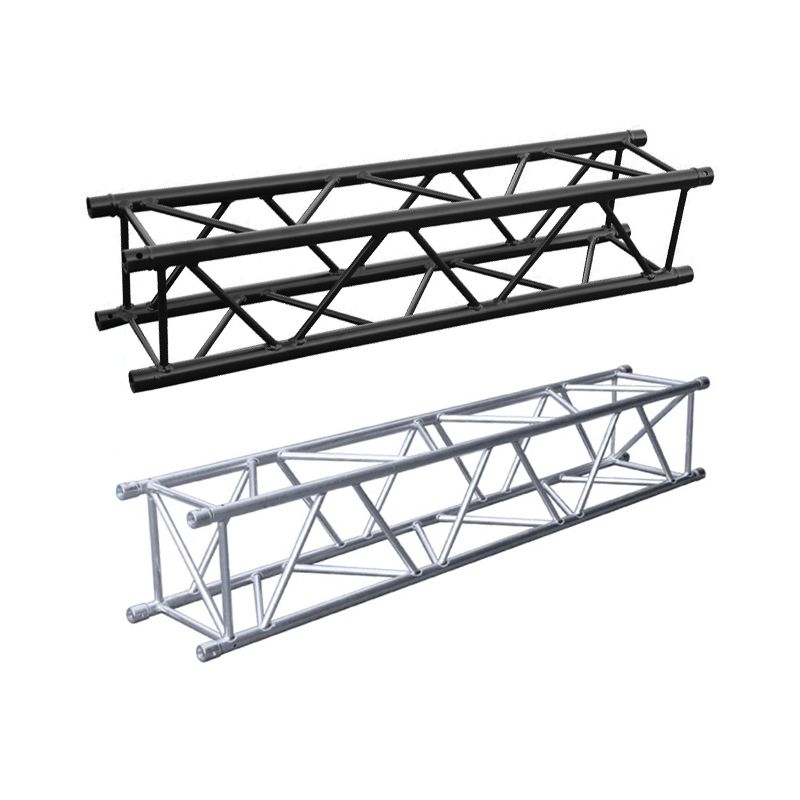

389mm truss

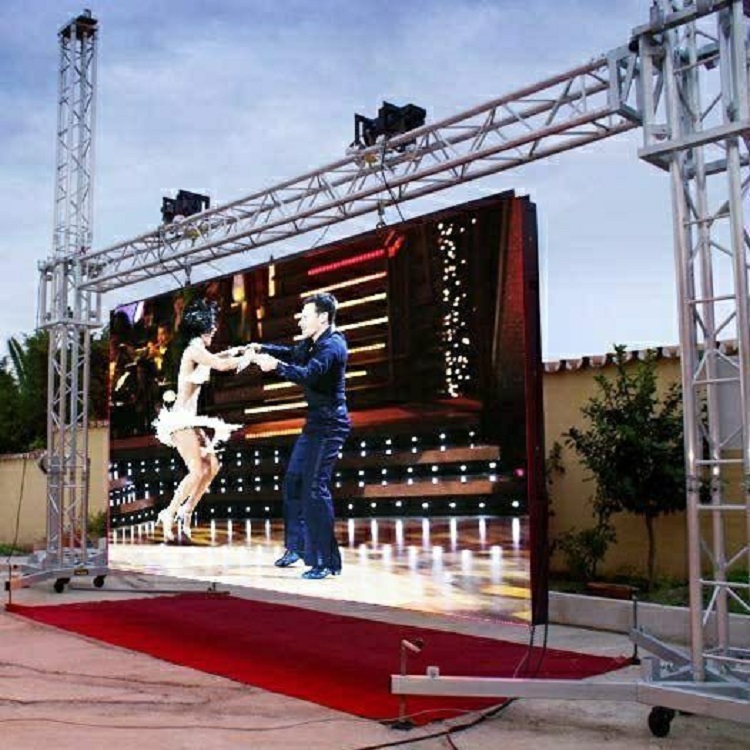

aluminum screen Gentry Truss
